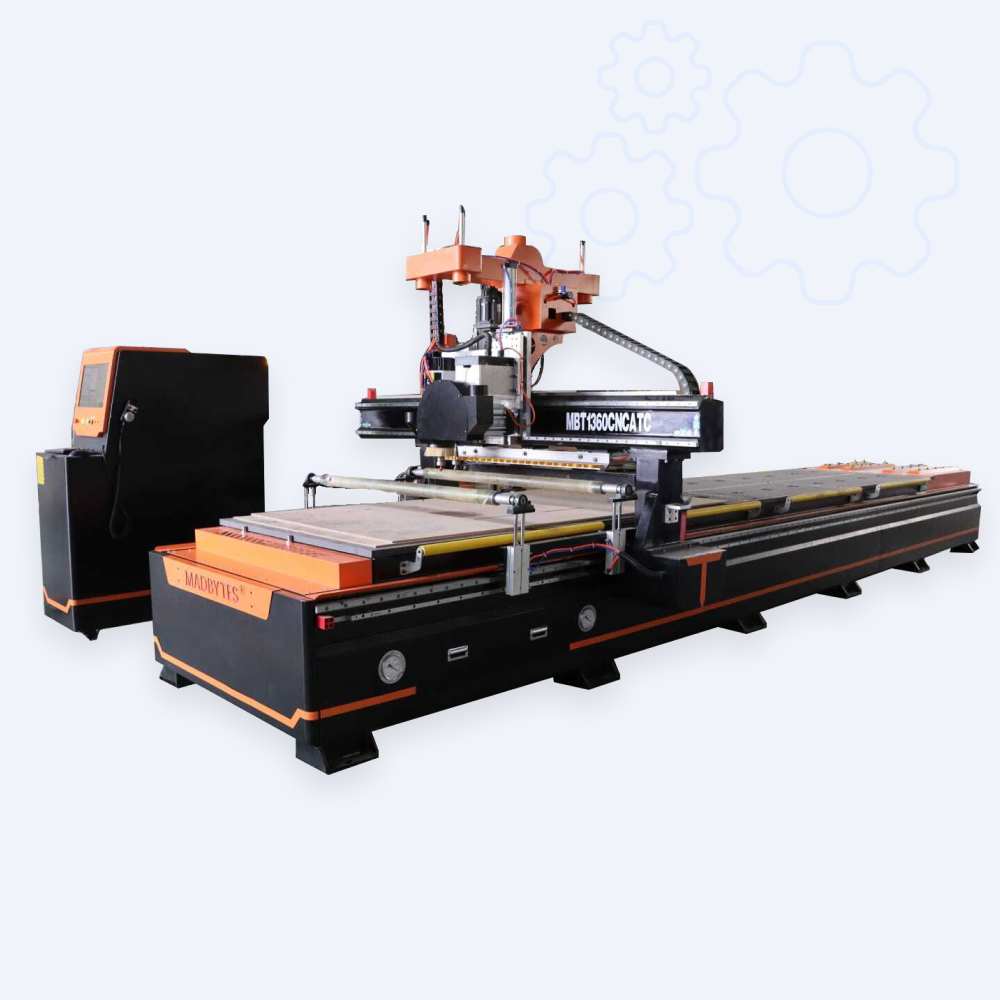

1360 Automatic Tool Changer Router
1360 Automatic Tool Changer Router - Image 2
1360 Automatic Tool Changer Router - Image 3

1360 Automatic Tool Changer Router

Vacuum Absorption:
The table has a 1-inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported. The whole table is divided into 6 areas, and the switch can control one of the areas to work, which is more stable.

Electricals: All the core electrical components are located in the integral control cabinet at the front of the equipment. This greatly saves floor space.





Buckle fixed: The table is also equipped with a T-slot, which can be fixed with a clamp for small materials.

Power Supported: 2.2KW/3.5KW/4.5KW/6KW and other power, suitable for the international standard ISO and F63.

Cooling Mode: Air Cooled and Water Cooled.

Linear Guideways
Designed with load capacity and rigidity higher than other similar products with circular-arc grooves and structure optimization. It features equal load ratings in the radial, reverses radial and lateral directions, and self-aligning to absorb installation error. The H series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

Helical Rack
There are 2 to 2.5 teeth for occlusal touch, the touch surface is large, the single point load is small, and compared with straight teeth, it has the advantages of low noise, large touch surface, and relatively large load torque.

ON-LINE→MACH3:
This system operates for CNC routers through the computer or laptop. It is easy to operate, easy to maintain, stable performance and low price.

OFF-LINE→DSP:
Work offline, completely separated from the computer during the process, machine directly controlled by a handle. Recovery breakpoint functions.

The other option:
Weihong, Syntec, LNC

Shimpo Reducer:
It helps to save on the costs of the operating system
It also helps in increasing the efficiency and reliability of motor applications
Another advantage of a shimpo reducer is that it reduces environmental pollution since it lowers the amount of gas emitted by fossil fuel.
Waterproof and dustproof structure, with good durability in CNC machining operations.
It can greatly improve the tool setting efficiency in CNC machining.
When the stroke is exceeded, it will sound an alarm.
Automatic detection of tool damage: If the tool is damaged or broken, the machine will automatically stop running and issue a warning.
Automatic tool wear compensation: Once the tool head wear is detected, the relevant program can be corrected to ensure the accuracy of the workpiece.

11kW Fuling Inverter – Technical parameters

Input voltage: 1AC220V±15% 3AC220V±15% 3AC380V±15%
Power range: 220V level: 0.5kW~90kW, 380V level: 0.75Kw~800Kw
Output frequency range: 0~200Hz
Input frequency: 47~63Hz, power factor≥95%
Control mode: Non-PG vector control and V/F control
3 V/F curves are optional: linear type, multipoint type and multiple power of two types.
Source of operation instruction: given by panel, terminal and RS485 communication
Overload capacity: type B : 150% rated current 60s, 180% rated current 10s; type P 120% rated current 60s, 150% rated current 10s
Pull-in torque: non-PG vector control (SVC) 0.5Hz/150%
Speed adjustable range: non-PG vector control 1: 100(SVC)
Accuracy of speed control±0.5%(SVC)
Carrier frequency: 1.0kHz~15.0kHz, and can be automatically adjusted according to temperature and load characteristics.



11kW Fuling Inverter – Features
Frequency resolution: the given digital value is 0.01Hz, and the analog quantity is given as the highest frequency plus 0.1%.
Torque elevation: Manual torque can elevate 0~30%
Brake: DC braking when starting and closing down.
Inching operation: frequency range: 0.0Hz~ maximum frequency of output, time of inching acceleration and deceleration: 0~3600.0s
Simple PLC and multi-speed operation: as many as 8 speeds of operation can be realized through built-in PLC or controlling terminals.
Internally installed process PID: convenient for the realization of close-loop control of the quantity of process (pressure, temperature, rate of flow);
Constant power operation: automatically adjusts the output frequency to keep the output voltage stable during voltage fluctuations.
DC bus can be shared by many inverters and the energy is balanced automatically.
Input and output terminal:
6 digital inputs, 2 relay outputs and 1 OC transistor output
2 analog input and 1 analog output
LED can display set frequency, output frequency, output voltage, current output and other parameters.

Specifications for 1360 ATC:

  • Working Voltage: 380V, Three phase, 50/60HZ
  • Working Area: 1300mm x 6000mm x 300mm
  • Industrial Heavy Duty Double Layer Nesting Frame
  • Highly Efficient 1.5mm Helical Rack Gear transmission
  • X, Y Axis Rack and Pinion, Z axis TBI Ball screw
  • 25mm Square Guide Rail for x,y,z axis
  • Yaskawa 1500W Servo Motor and Driver System
  • 11kW Fuling Inverter and 3 sets Japan Shimpo Reducer
  • Auto Tool Position Sensor
  • 4.5kW to 12kW HQD Air Cooled /Water Cooled Spindle for Auto Tool Changer
  • 12 pieces linear movable ISO30 Auto Tool Changer Magazine
  • Vacuum & T-Slot table with 2 sets
  • 7.5kW Air Vacuum Pump
  • 3 Bags Auto Dust Collector with Double bags Secondary Dust Removal Device
  • LNC 2600 4-Axis ATC Control System with hand wheel
  • 4th Independent Rotary Axis(diameter 200mm,length 2500mm)
  • Pneumatic Process Wheels
  • Saw Blade Head
  • Auto Lubrication for Transmission System
  • 12 Sets Auto-Tool Changer Holders, Cutters and Collets, 1 set Qing bottom cutter
  • 20 Sets of Woodworking Tools
  • The whole set of maintenance tools, Allen wrench, Spanner, copper connection, clamps etc.
  • 8 pieces safety curtain
