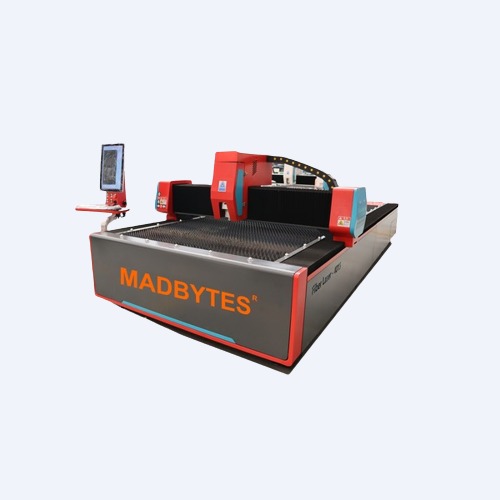

A fiber laser cutting machine is the best cutting tool for thin sheet metal cutting, especially for carbon steel, and stainless steel cutting, it combines the functions of a compact layout, stable optical link, convenient operation and reliable performance in one.
Applicable industry:
The applicable materials include ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.
Suitable for aerospace technology, rocket, plane, robot, elevators, steamships and automobile manufacturing and metal parts processing industry for metal plates, advertisement, kitchen ware, bit tool, hardware etc.
Applications:
These fiber lasers can be used for materials like ordinary carbon steel, stainless steel, alloy steel, Aluminium, copper, titanium plates etc
Also suitable for aerospace technology, rockets, planes, robots, elevators, steamships, automobile manufacturing and metal parts processing industry for metal plates etc.
Technical Data:
Model: MadBytes1530
Working Area (X, Y-Axis) 1500x3000mm
Laser Power: 1000W
Laser Wavelength: 1064nm
Application Materials: Metal
Max. Cutting Thickness: CS/Iron:1-12mm SS:1-6mm
Gross Power: 9KW
Positioning Accuracy: ±0.03mm/m
Reposition Accuracy: ±0.02mm1530
X/Y-axis Maximum Simultaneous Positioning Speed: 140m/min
U-axis max. moving speed: 80m/min
Cooling Model: Water cooling
Rotary system: Optional
Machine Features:
- Integrated machine design, left and right collecting drawer design highly saving space.
- Stability and reliability for light path system and control system.
- Fiber laser has high and stable function and lifespan which is over 100000 hours.
- Higher cutting quality and efficiency with cutting speed is up to 15m/min with perfect cutting edge
- High-performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.
- Imported ball screw and square guide provide high speed and accuracy when working.
- The water chiller high capacity provides stability during long-term operation.
- A separate control box and handheld control make it easier to control the machine.
- Easier to use, adjustment of the optical beam is not necessary.
Au3lech A200MS Laser Head Features:
- Precision optical components, excellent beam quality and stability
- Perfect water-cooling system to ensure the best cooling effect of optical lens
- High-grade dustproof design, effectively avoiding dust intrusion
- Precision machining, stable and reliable parts fit
- Supporting 3D cutting applications
Au3lech A200MS Laser Head Features:
- Precise optical components with great output beam quality and stability
- Exceptional water cooling system ensuring the best cooling effect of optical lens
- Industry grade dustproof design effectively avoiding dust intrusion
- Precise machining offering high stability and reliability
- Supports 3D cutting applications
Au3lech A200MS Laser Head:
A200MS-3D manual fiber laser cutting head, designed for 3D environment cutting as a tube, robot hand under laser power within 2000W. The dedicated nozzle, ceramic ring and tips design is to make the cutting head more flexible.
Au3lech A200MS Laser Head for Max 1kW Laser Source:
A robot hand under laser power within 2000W designed for 3D environment cutting. The laser cutting head is more flexible as it is equipped with the dedicated nozzle and ceramic ring and tips design.
Max Laser Source – Features
- Excellent Material processing performance
- High speed in thin sheet cutting
- Strong capability in thick material processing
- Compact Design, Maintenance Free
- Highly integrated system with modular design
- Easy maintenance significantly reduce TCO
- premium components, superior performance and longer life time
- Better beam quality vs multi module lasers
- Greatly improved efficiency
- Smaller size with higher stability >60% reduction in volume Higher flexibility when integrated into system
- High Level Vertical Integration All key components are designed and produced in house Strict quality control, High consistency and reliability
Advantages:
- High quality in cutting-edge precision in cutting. Excellent in stability.
- Cutting large format and suitable for cutting more material.
- Drawer and air valve for work convenience.
- High performance-price ratio
- Low cost of using
- Low fees for the future maintenance
Advantages:
- Excellence in stability with high quality cutting -edge precision
- Cuts heaps of material with a large cutting format
- Convenience with drawer and air valve
- High performance-price ratio
