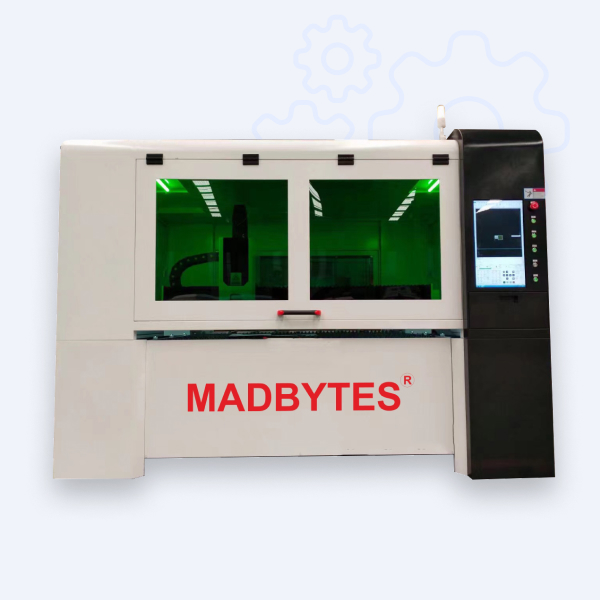

1530 – Max 1.5kW Fiber Laser
1530 - Max 1.5kW Fiber Laser - Image 2

1530 – Max 1.5kW Fiber Laser

Inclusion:

  • Working voltage: Single Phase,220V,50/60hz
  • Working area (X, Y Axis):1500*3000mm
  • Heavy-Duty Machine Frame
  • X, Y Axis Leadshine 750w Servo Motors and Drives, Z Axis 400w Servo with Brake
  • Taiwan HONTI Square Guide Rail
  • High-speed Taiwan YYC Rack Gear Transmission for X, Y-Axis, TBI ball screw for Z axis
  • Au3lech AS1000 Control System with the industrial computer display.
  • Au3lech A200MS Laser head
  • MAX 1500W Fiber Laser Generator
  • Japan Shimpo Reducer
  • CWFL1500 Water Chiller
  • Auto Lubricating Pump
  • Package Size:4300x2280x2020mm
  • N.W:2200KG   G.W:2500KG

Au3lech A200MS Laser Head:

A200MS-3D manual fiber laser cutting head, designed for 3D environment cutting as a tube, robot hand under laser power within 2000W. The dedicated nozzle, ceramic ring and tips design is to make the cutting head more flexible.



Au3lech A200MS Laser Head Features:

  • Precision optical components, excellent beam quality and stability
  • Perfect water-cooling system to ensure the best cooling effect of optical lens
  • High-grade dustproof design, effectively avoiding dust intrusion
  • Precision machining, stable and reliable parts fit
  • Supporting 3D cutting applications



Applicable industry:

The applicable materials include ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.

Suitable for aerospace technology, rocket, plane, robot, elevators, steamships and automobile manufacturing and metal parts processing industry for metal plates, advertisement, kitchen ware, bit tool, hardware etc.



Technical Data:

Model: MadBytes1530

Working Area (X, Y-Axis) 1500x3000mm

Laser Power: 1500W

Laser Wavelength: 1064nm

Application Materials: Metal

Max. Cutting Thickness: CS/Iron:1-12mm SS:1-6mm

Gross Power: 9KW

Positioning Accuracy: ±0.03mm/m

Reposition Accuracy: ±0.02mm

X/Y-axis Maximum Simultaneous Positioning Speed: 140m/min

U-axis max. moving speed: 80m/min

Cooling Model: Water cooling

Rotary system: Optional



Features:

  • Integrated machine design, left and right collecting drawer design highly saving space.
  • Stability and reliability for light path system and control system.
  • Fiber laser has high and stable function and lifespan which is over 100000 hours.
  • Higher cutting quality and efficiency with a cutting speed is up to 15m/min with perfect cutting edge
  • High-performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.
  • Imported ball screw and square guide provide high speed and accuracy when working.
  • The water chiller high capacity provides stability during long-term operation.
  • A separate control box and handheld control make it easier to control the machine.
  • Easier to use, adjustment of the optical beam is not necessary.

Advantages:

  • High quality in cutting-edge precision in cutting. Excellent in stability.
  • Cutting large format and suitable for cutting more material.
  • Drawer and air valve for work convenience.
  • High performance-price ratio
  • Low cost of using
  • Low fees for future maintenance
