Description:

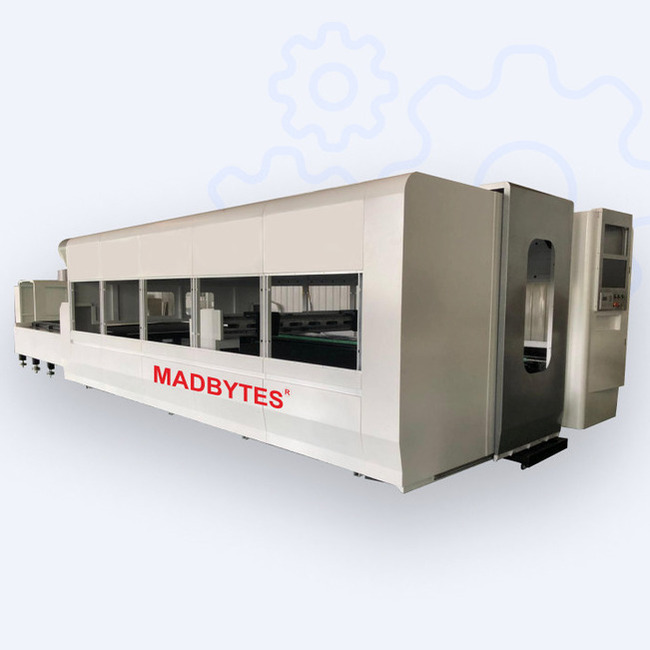

Fiber laser cutting machine is the best cutting tool for thin sheet metal cutting, especially for carbon steel, and stainless steel cutting, it combines the function of a compact layout, stable optical link, convenient operation and reliable performance in one.
Main Configuration:
- Working voltage: Three phase,380V,50/60HZ
- Working size 3000*1500mm
- Heavy-duty machine frame
- Japan Yaskawa 1300W Servo for y-axis,850w for the x-axis,400W with brake for Z Axis
- Japan Pantoscopic Square Guide Rail
- High-speed Taiwan YYC Rack Gear Transmission for x, y-axis, TBI ball screw for Z axis
- CypCut FSCUT2000C Control System with industrial computer display and Wireless Hand Wheel
- Raytools BM110 laser head with autofocus and anti-collision
- MAX 3000W Fiber Laser Generator
- CWFL-3000 Water Chiller Device
- Automatic Height Controller
- Japan Shimpo Reducer
- Package Size:4500*2280*1800mm
- N.W:2500KG G.W:3000KG
Features:
- Integrated machine design, left and right collecting drawer design highly saving space.
- Stability and reliability for light path system and control system.
- Fiber laser has high and stable function and lifespan which is over 100000 hours.
- Higher cutting quality and efficiency with a cutting speed is up to 15m/min with perfect cutting edge.
- High-performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.
- Imported ball screw and square guide provide high speed and accuracy when working.
- Water Chiller high capacity provides stability during long-term operation.
- A separate control box and handheld control make it easier to control the machine.
- Easier to use, adjustment of the optical beam is not necessary.
Raytools BM110 Laser Head Features:
- A versatile accessory designed to work with laser sources upto 3kW
- Automatic Focus ensures precise and reliable cuts
- High-quality build materials and advanced design
- Capable of cutting through a range of materials including aluminium, stainless steel and galvanized steel with impressive accuracy and efficiency
- Delivers high-quality results helping increase production
Raytools BM110 Laser Head Technical Parameters:
- Model: BM110
- Power Rating: 3kW
- Clear Aperture: 28mm
- Cover Glass: 27.9mm*4.1mm
- Autofocus range: +9 to -14mm
- Assist gas Pressure: 25bar
- Weight: 4.0 kg
Technical Data:
- Model – MadBytes 3015
- Working Area (Y,X Axis) 3000 x 1500mm
- Laser Power: 3000W
- Laser Wavelength: 1064nm
- Application Materials: Metal
- Max. Cutting Thickness: CS/Iron:1-20mm SS:1-8mm
- Gross Power: 9KW
- Positioning Accuracy: ±0.03mm/m
- Reposition Accuracy: ±0.02mm
- X/Y-axis Maximum Simultaneous Positioning Speed: 140m/min
- U-axis max. moving speed: 80m/min
- Cooling Model: Water Cooling
- Rotary System: Optional
Advantages:
- High quality in cutting-edge precision in cutting. Excellent in stability.
- Cutting large format and suitable for cutting more material.
- Drawer and air valve for work convenience.
- High performance-price ratio
- Low-cost use
- Low fees for the future maintenance
Applicable industry:
- The applicable materials include ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.
- Suitable for aerospace technology, rocket, plane, robot, elevators, steamships and automobile manufacturing and metal parts processing industry for metal plates, advertisement, kitchen ware, bit tool, hardware etc.
